Mini Mist Generators
Mini Mist Steam Generators
from $800.00
A compact 8" x 8" x 14" design, perfect for high rises, condos, hotels, or any small bathroom. Available for steam rooms from 60-300 cubic feet.
- Front panel & top are one piece to allow for access to circuitry
- Quick release latches turn clockwise to lock - counter clockwise to unlock
- All plumbing and electrical installed outside generator inside junction box for external in-field-wiring. No need to enter unit.
Model:
Quantity:
Note: A timer and steam head is required for proper operation of the steam generators.
| Model | Maximum Cubic Feet | KW | Volts | Phase | Amps | Breaker Size | Wire Size |
|---|---|---|---|---|---|---|---|
| MM-35 | 60 | 3.5 | 240 | 1 | 15 | 20A | 12AWG |
| MM-65 | 140 | 6.5 | 240 | 1 | 27 | 40A | 8AWG |
| MM-75 | 220 | 7.5 | 240 | 1 | 31 | 40A | 8AWG |
| MM-90 | 300 | 9 | 240 | 1 | 38 | 50A | 8AWG |

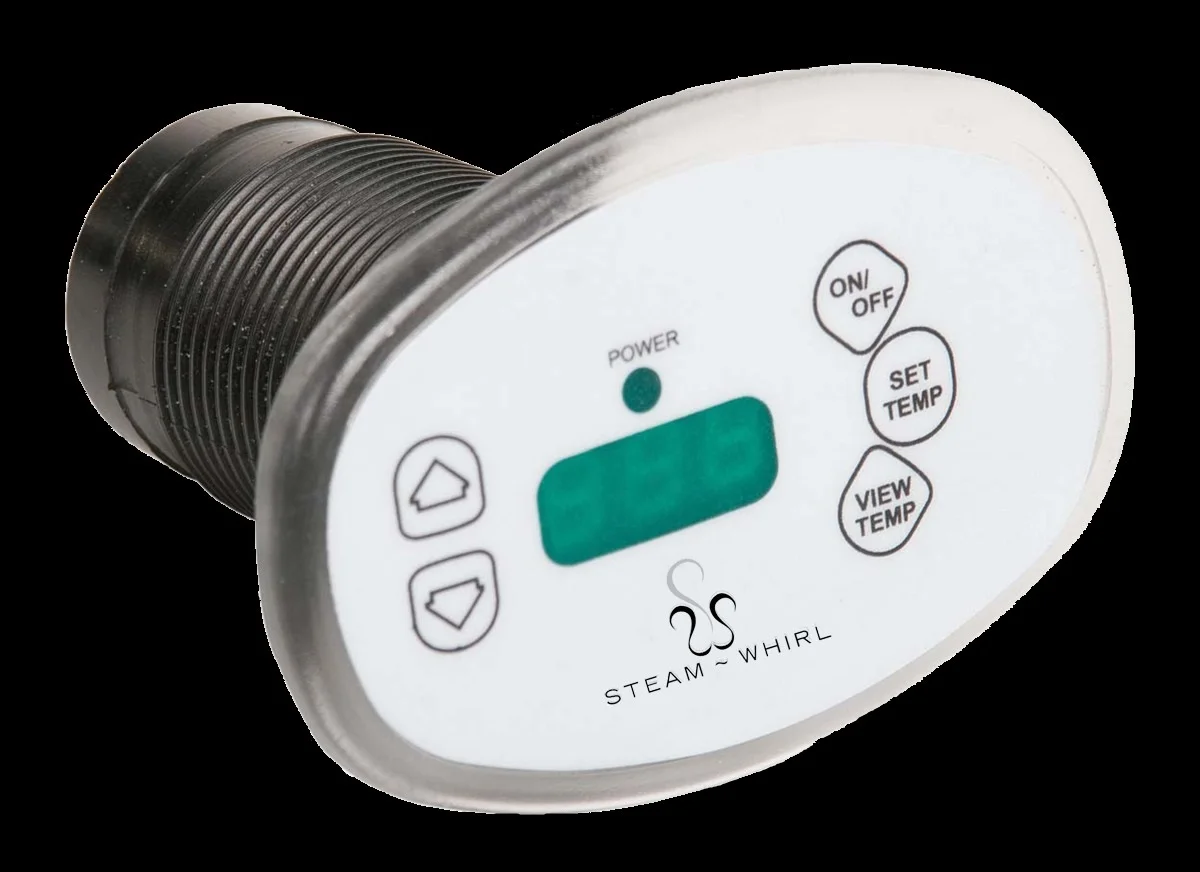

Includes Programmable Digital Timer and Temperature Control Assembly, with Gasket, and
White Oval Timer Overlay, 1 25’ Modular Telephone Cable and 1 each 1/2” Steam Head and Escutcheon in choice of finish
